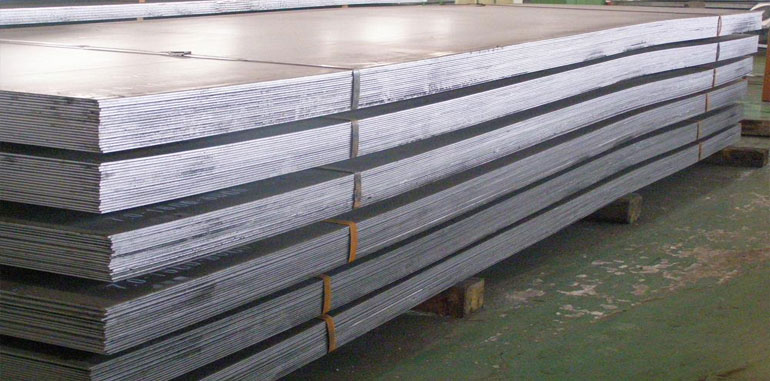

PMP (Plate Mill Plates)

JSPL (Jindal Steel & Power) make Plates are of premium quality which are mainly used in applications such as Pressure Vessels & Boilers, Ship Building, Pre-Engineered Fabricated Buildings and various other General Engineering & Structural Fabrication, etc.

The plates and coils as produced by 'JSPL' are of premium quality in terms of dimensional adherence and internal soundness owing to its clean raw material, sound steel refining facilities and an efficient rolling mill. These comply to IS 2062 specifications up to E450 grades besides a wide range of international standards and steel grades as per EN, DIN, JIS, ASTM and so on. JSPL's mill is approved by various societies such as LRS, DNV, ABS and GL for shipbuilding steel, besides, having accreditations such as : ISO 9001:2000, ISO 14001:2004 , OSHAS 18001, CE, ADW-2000 and certification by IBR for boiler grade steel.

Our wide range of Plate Mill Plates are procured from reputed manufacturer Jindal Steel and used for Pressure vessels, ship building and engineering structures.

These PM Plates are manufactured with optimum quality raw materials using advanced technology and tested on standard quality parameters, we offer these plates in various lengths and thicknesses as per our clients requirements.

Continuous Caster Slab

---

Thickness  :   150 mm - 300 mm

Width        :   1000 mm - 2300 mm

Length       :   2600 mm - 4800 mm

Weight       :   4.6 - 30 MT (Max.)

---

Finish Plate

---

Thickness  :   5 mm - 150 mm

Width        :   900 mm - 5000 mm

Length       :   3000 mm - 24000 mm

Weight       :   30 MT (Max.)

---

Features

---

• Scale Free Heat Treated Plates
• Online Direct Quenched Plates
• Ultrasonic Testing Machine online top down 102 probes
• Residual Stress Free Plates
• Customized Plates: Grades, Thickness, Width, Length
• Ultra Wide 5000mm Plates
• ASTM Tolerances
• Metallurgical Process: DRI, EAF, LF, Vacuum Degassing, Vertical mould continuous Caster with Soft Reduction, Plate Rolling, Heat Treatment
• TMCP, MULPIC (ACC/DQ)
• Product and Strength Range: Thickness-5-150mm, Width- 900-5000mm Length- 3000-24000mm, YS-235-1800 Mpa
• Advanced OCTOPUS testing software

Applications

---

  General engineering

  Structural fabrication

  Railway wagons

  Pressure vessels and boilers

  Oil and gas pipelines

  Ship building

  Earthmoving equipment

  Wind mills

  Defence equipment
